| COPPER NICKEL PIPES |
| european standards for copper nickel pipes |
| 14 bar - DIN 86019 / BS 2871 CN102 / EN 12449 / EN 1652 |
| |
|

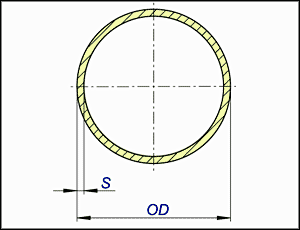

Outside diameter of pipe ØD |
14 bar | |||
|
Wall thickness |
Theoretical weight |
|||
| nominal | actual | actual | ||
| inch | ND | mm | mm | Kg/m |
| 0.125 | 10 | 1.0 | 0.26 | |
| 0.25 | 12 | 1.0 | 0.31 | |
| 0.38 | 10 | 16 | 1.0 | 0.42 |
| 0.5 | 15 | 20 | 1.0 | 0.53 |
| 0.75 | 20 | 25 | 1.5 | 0.99 |
| 1 | 25 | 30 | 1.5 | 1.20 |
| 1.25 | 32 | 38 | 1.5 | 1.54 |
| 1.5 | 40 | 44.5 | 1.5 | 1.81 |
| 2 | 50 | 57 | 1.5 | 2.34 |
| 2.5 | 65 | 76.1 | 2.0 | 4.16 |
| 3 | 80 | 88.9 | 2.5 | 6.07 |
| 4 | 100 | 108 | 2.5 | 7.41 |
| 5 | 125 | 133 | 3.0 | 10.95 |
| 6 | 150 | 159 | 3.0 | 13.14 |
| 7 | 175 | 193.7 | 3.5 | 18.70 |
| 8 | 200 | 219.1 | 3.5 | 21.19 |
| 10 | 250 | 267 | 4.0 | 29.55 |
| 12 | 300 | 323.9 | 5.0 | 44.78 |
| 14 | 350 | 368 | 5.5 | 56.00 |
| 16 | 400 | 419.1 | 6.0 | 69.60 |
| 18 | 450 | 457.2 | 6.0 | 76.03 |
| 20 | 500 | 508 | 6.5 | 91.55 |
| 24 | 600 | 610 | 8.0 | 135.26 |
| 28 | 700 | 711 | 9.0 | 177.45 |
| 32 | 800 | 813 | 10.0 | 225.53 |
| 36 | 900 | 914 | 11.0 | 278.98 |
