| COPPER NICKEL BUTT WELD FITTINGS |
| end caps - DIN 28011 / EEMUA 234 in copper nickel |
| 14 bar - DIN 28011 |
| STANDARD : DIN 28011 |
| |

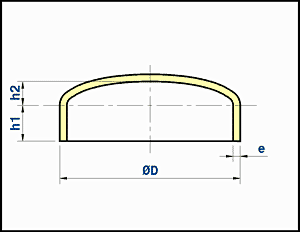

| Outside diameter of pipe | Wall | Heigh | Theoretical | ||
| ØD | thickness | weight | |||
|
nominal inch |
actual mm |
e mm |
h1 mm |
h2 mm |
Kg/piece |
| 3 | 88.9 | 2.5 | 20 | 16 | 0.53 |
