COPPER NICKEL BUTT WELD FITTINGS
eccentric reducers - Ext. from DIN 86089 / EEMUA 234 in copper nickel
10 bar - Ext. from DIN 86089
STANDARD : DIN 86089
Printable version
PDF version
10 bar - Ext. from DIN 86089

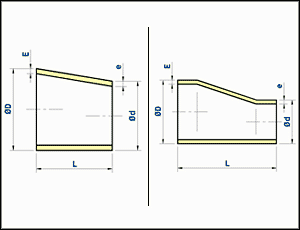

Outside diameter Wall Length Theoretical
ØD x Ød ØD x Ød thickness weight
nominal
inch 		actual
mm 		E
mm 		e
mm 		L
mm
Kg/piece

0.5 x 0.38 20 x 16 1 1 30 0.01
0.75 x 0.38 25 x 16 1.5 1 30 0.02
0.75 x 0.5 25 x 20 1.5 1 30 0.03
1 x 0.38 30 x 16 1.5 1 35 0.03
1 x 0.5 30 x 20 1.5 1 35 0.04
1 x 0.75 30 x 25 1.5 1.5 35 0.05
1.25 x 0.38 38 x 16 1.5 1 50 0.05
1.25 x 0.5 38 x 20 1.5 1 50 0.06
1.25 x 0.75 38 x 25 1.5 1.5 50 0.07
1.25 x 1 38 x 30 1.5 1.5 50 0.08
1.5 x 0.5 44.5 x 20 1.5 1 80 0.09
1.5 x 0.75 44.5 x 25 1.5 1.5 80 0.11
1.5 x 1 44.5 x 30 1.5 1.5 80 0.12
1.5 x 1.25 44.5 x 38 1.5 1.5 80 0.13
2 x 0.75 57 x 25 1.5 1.5 80 0.13
2 x 1 57 x 30 1.5 1.5 80 0.14
2 x 1.25 57 x 38 1.5 1.5 80 0.15
2 x 1.5 57 x 44.5 1.5 1.5 80 0.16
2.5 x 1 76.1 x 30 2 1.5 90 0.24
2.5 x 1.25 76.1 x 38 2 1.5 90 0.25
2.5 x 1.5 76.1 x 44.5 2 1.5 90 0.26
2.5 x 2 76.1 x 57 2 1.5 90 0.29
3 x 1.25 88.9 x 38 2 1.5 90 0.29
3 x 1.5 88.9 x 44.5 2 1.5 90 0.30
3 x 2 88.9 x 57 2 1.5 90 0.32
3 x 2.5 88.9 x 76 2 2 90 0.40
4 x 1.5 108 x 44.5 2.5 1.5 100 0.46
4 x 2 108 x 57 2.5 1.5 100 0.48
4 x 2.5 108 x 76.1 2.5 2 100 0.57
4 x 3 108 x 88.9 2.5 2 100 0.61
5 x 2 133 x 57 2.5 1.5 140 0.80
5 x 2.5 133 x 76.1 2.5 2 140 0.93
5 x 3 133 x 88.9 2.5 2 140 0.98
5 x 4 133 x 108 2.5 2.5 140 1.16
5 x 2 133 x 57 3 1.5 140 0.86
5 x 2.5 133 x 76.1 3 2 140 1.06
5 x 4 133 x 108 3 2.5 140 1.34
6 x 2.5 159 x 76.1 2.5 2 150 1.13
6 x 3 159 x 88.9 2.5 2 150 1.19
6 x 4 159 x 108 2.5 2.5 150 1.38
6 x 5 159 x 133 2.5 2.5 150 1.51
6 x 2.5 159 x 76.1 3 2 150 1.35
6 x 4 159 x 108 3 2.5 150 1.65
7 x 3 193.7 x 88.9 2.5 2 155 1.39
7 x 4 193.7 x 108 2.5 2.5 155 1.58
7 x 5 193.7 x 133 2.5 2.5 155 1.71
7 x 6 193.7 x 159 2.5 2.5 155 1.85
7 x 4 193.7 x 108 3.5 2.5 155 2.21
8 x 4 219.1 x 108 3 2.5 155 2.47
8 x 5 219.1 x 133 3 2.5 155 2.60
8 x 6 219.1 x 159 3 2.5 155 2.74
8 x 7 219.1 x 193.7 3 2.5 155 2.93
8 x 4 219.1 x 108 3.5 2 155 2.88
10 x 5 267 x 133 3 2.5 210 3.30
10 x 6 267 x 159 3 2.5 210 3.49
10 x 7 267 x 193.7 3 2.5 210 3.75
10 x 8 267 x 219.1 3 3 210 4.25
12 x 5 323.9 x 133 4 2.5 210 5.30
12 x 6 323.9 x 159 4 2.5 210 5.60
12 x 7 323.9 x 193.7 4 2.5 210 6.02
12 x 8 323.9 x 219.1 4 3 210 6.30
12 x 10 323.9 x 267 4 3 210 6.88
14 x 6 368 x 159 4 2.5 300 8.75
14 x 7 368 x 193.7 4 2.5 300 9.34
14 x 8 368 x 219.1 4 3 300 9.76
14 x 10 368 x 267 4 3 300 10.57
14 x 12 368 x 323.3 4 4 300 11.53
16 x 7 419.1 x 193.7 4 2.5 325 11.04
16 x 8 419.1 x 219.1 4 3 325 11.50
16 x 10 419.1 x 267 4 3 325 12.38
16 x 12 419.1 x 323.9 4 4 325 13.42
16 x 14 419.1 x 368 4 4 325 14.22
18 x 8 457.2 x 219.1 4 3 350 13.14
18 x 10 457.2 x 267 4 3 350 14.08
18 x 12 457.2 x 323.9 4 4 350 15.20
18 x 14 457.2 x 368 4 4 350 16.06
18 x 16 457.2 x 419.1 4 4 350 17.07
20 x 10 508 x 267 4.5 3 375 18.07
20 x 12 508 x 323.9 4.5 4 375 19.42
20 x 14 508 x 368 4.5 4 375 20.47
20 x 16 508 x 419.1 4.5 4 375 21.68
20 x 18 508 x 457.2 4.5 4 375 22.57
24 x 14 610 x 368 5 4 400 27.19
24 x 16 610 x 419.1 5 4 400 28.62
24 x 18 610 x 457.2 5 4 400 29.69
24 x 20 610 x 508 5 4.5 400 31.12
