COPPER NICKEL BUTT WELD FITTINGS
reducing tees - Ext. from DIN 86088 / EEMUA 234 in copper nickel
10 bar - Ext. from DIN 86088
STANDARD : DIN 86088
Printable version
PDF version
10 bar - Ext. from DIN 86088

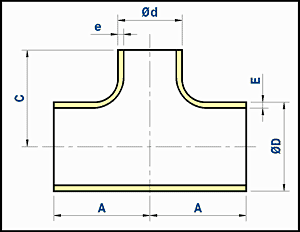

Outside diameter of pipe Wall Centre Theoretical
ØD x Ød ØD x Ød thickness to face weight
nominal
inch 		actual
mm 		E
mm 		e
mm 		A
mm 		C
mm
Kg/piece

1.25 x 1 38 x 30 1.5 1.5 48 42 0.10
1.5 x 1 44.5 x 30 1.5 1.5 57 45 0.21
1.5 x 1.25 44.5 x 38 1.5 1.5 57 51 0.21
2 x 1 57 x 30 1.5 1.5 64 51 0.32
2 x 1.25 57 x 38 1.5 1.5 64 57 0.32
2 x 1.5 57 x 44.5 1.5 1.5 64 63 0.32
2.5 x 1 76.1 x 30 2 1.5 76 56 0.65
2.5 x 1.25 76.1 x 38 2 1.5 76 62 0.65
2.5 x 1.5 76.1 x 44.5 2 1.5 76 71 0.67
2.5 x 2 76.1 x 57 2 1.5 76 73 0.67
3 x 1.25 88.9 x 38 2 1.5 86 73 0.87
3 x 1.5 88.9 x 44.5 2 1.5 86 76 0.87
3 x 2 88.9 x 57 2 1.5 86 80 0.89
3 x 2.5 88.9 x 76.1 2 2 86 83 0.92
4 x 1.5 108 x 44.5 2.5 1.5 105 89 1.60
4 x 2 108 x 57 2.5 1.5 105 90 1.60
4 x 2.5 108 x 76.1 2.5 2 105 92 1.65
4 x 3 108 x 88.9 2.5 2 105 96 1.65
5 x 2 133 x 57 2.5 1.5 124 98 3.00
5 x 2.5 133 x 76.1 2.5 2 124 105 3.10
5 x 3 133 x 88.9 2.5 2 124 108 3.25
5 x 4 133 x 108 2.5 2.5 124 117 3.30
5 x 2 133 x 57 3 1.5 124 98 3.60
5 x 2.5 133 x 76.1 3 2 124 105 3.70
5 x 4 133 x 108 3 2.5 124 117 3.95
6 x 2.5 159 x 76.1 2.5 2 143 118 4.40
6 x 3 159 x 88.9 2.5 2 143 121 4.50
6 x 4 159 x 108 2.5 2.5 143 130 4.60
6 x 5 159 x 133 2.5 2.5 143 136 4.60
6 x 2.5 159 x 76.1 3 2 143 118 5.25
6 x 4 159 x 108 3 2.5 143 130 5.50
8 x 4 219.1 x 108 3 2.5 178 156 12.6
8 x 5 219.1 x 133 3 2.5 178 162 12.7
8 x 6 219.1 x 159 3 2.5 178 168 12.8
8 x 4 219.1 x 108 3.5 2.5 178 156 14.75
10 x 4 267 x 108 3 2.5 216 184 12.5
10 x 5 267 x 133 3 2.5 216 189 13.5
10 x 6 267 x 159 3 2.5 216 194 13.79
10 x 7 267 x 194 3 2.5 216 198 14.8
10 x 8 267 x 219 3 3 216 203 16.6
12 x 6 324 x 159 4 2.5 254 219 30.45
12 x 7 324 x 194 4 2.5 254 222 32.6
12 x 8 324 x 219 4 3 254 229 34.6
12 x 10 324 x 267 4 3 254 241 37.8
14 x 6 368 x 159 4 2.5 279 240 37.4
14 x 7 368 x 194 4 2.5 279 242 39.85
14 x 8 368 x 219 4 3 279 248 42.1
14 x 10 368 x 267 4 3 279 257 45.55
14 x 12 368 x 324 4 4 279 270 52
16 x 8 419 x 219 4 3 305 276 52.1
16 x 10 419 x 267 4 3 305 283 56.4
16 x 12 419 x 324 4 4 305 295 64.8
16 x 14 419 x 368 4 4 305 305 68.9
18 x 10 457 x 267 4 3 343 310 55.7
18 x 12 457 x 324 4 4 343 321 64.6
18 x 14 457 x 368 4 4 343 330 68.9
18 x 16 457 x 419 4 4 343 330 74.6
20 x 12 508 x 324 4.5 4 381 347 72.5
20 x 14 508 x 368 4.5 4 381 356 77.4
20 x 16 508 x 419 4.5 4 381 356 83.9
20 x 18 508 x 457 4.5 4 381 368 94.1
24 x 14 610 x 368 5 4 432 393 109.95
24 x 16 610 x 419 5 4 432 406 117.85
24 x 18 610 x 457 5 4 432 419 130.35
24 x 20 610 x 508 5 4.5 432 432 141.85
