COPPER NICKEL BUTT WELD FITTINGS
equal tees - DIN 86088 / EEMUA 234 in copper nickel
10 bar - DIN 86088
STANDARD : DIN 86088
Printable version
PDF version

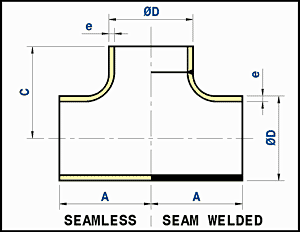

10 bar - DIN 86088

Outside diameter of pipe Wall Theoretical
ØD thickness A C weight
nominal
inch 		actual
mm 		e
mm
mm
mm
Kg/piece

0.5 20 1 25 25 0.05
0.75 25 1.5 29 29 0.10
1 30 1.5 38 38 0.19
1.25 38 1.5 48 48 0.32
1.5 44.5 1.5 57 57 0.56
2 57 1.5 64 64 0.72
2.5 76 2 76 76 1.25
3 89 2 86 86 1.74
4 108 2.5 105 105 2.94
5 133 2.5 124 124 4.70
6 159 2.5 143 143 5.25
7 194 2.5 157 157 5.8
8 219 3 178 178 12.60
10 267 3 216 216 16.60
12 324 4 254 254 31.50
14 368 4 279 279 39.40
16 419 4 305 305 55.10
18 457 4 343 343 67.65
20 508 4.5 381 381 92.80
24 610 5 432 432 126.60
