COPPER NICKEL BUTT WELD FITTINGS
saddles - DIN 86087 / EEMUA 234 in copper nickel
10 bar - DIN 86087
STANDARD : DIN 86087
Printable version
PDF version
10 bar - DIN 86087

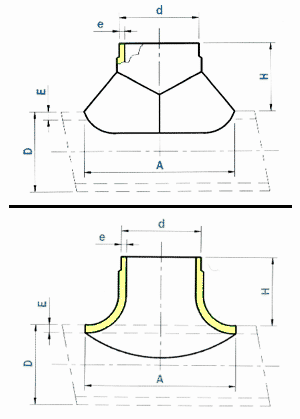

Outside diameter of pipe Wall Centre Theoretical
ØD x Ød ØD x Ød thickness to face weight
nominal
inch 		actual
mm 		E
mm 		e
mm 		H
mm 		A
mm
Kg/piece

0.5 x 0.5 20 x 20 1 1 20 32 0.05
0.75 x 0.5 25 x 20 1.5 1 20 40 0.05
0.75 x 0.75 25 x 25 1.5 1.5 22 40 0.06
1 x 0.75 30 x 25 1.5 1.5 22 40 0.06
1 x 1 30 x 30 1.5 1.5 30 50 0.1
1.25 x 1 38 x 30 1.5 1.5 30 50 0.1
1.25 x 1.25 38 x 38 1.5 1.5 35 64 0.11
1.5 x 1.25 44.5 x 38 1.5 1.5 35 64 0.14
1.5 x 1.5 44.5 x 44.5 1.5 1.5 35 74 0.15
2 x 1.25 57 x 38 1.5 1.5 35 64 0.15
2 x 1.5 57 x 44.5 1.5 1.5 35 74 0.17
2 x 2 57 x 57 1.5 1.5 40 97 0.25
2.5 x 1.25 76.1 x 38 2 1.5 35 64 0.3
2.5 x 1.5 76.1 x 44.5 2 1.5 35 74 0.34
2.5 x 2 76.1 x 57 2 1.5 40 97 0.48
2.5 x 2.5 76.1 x 76.1 2 2 50 126 0.52
3 x 1.25 88.9 x 38 2 1.5 35 64 0.36
3 x 1.5 88.9 x 44.5 2 1.5 35 74 0.44
3 x 2 88.9 x 57 2 1.5 40 97 0.5
3 x 2.5 88.9 x 76.1 2 2 50 126 0.56
3 x 3 88.9 x 88.9 2 2 55 149 0.76
3 x 1.25 88.9 x 38 2.5 1.5 35 64 0.45
3 x 1.5 88.9 x 44.5 2.5 1.5 35 74 0.55
3 x 2 88.9 x 57 2.5 1.5 40 97 0.62
3 x 2.5 88.9 x 76.1 2.5 2 50 126 0.7
4 x 1.5 108 x 44.5 2.5 1.5 35 74 0.32
4 x 2 108 x 57 2.5 1.5 40 97 0.4
4 x 2.5 108 x 76.1 2.5 2 50 126 0.65
4 x 3 108 x 88.9 2.5 2 55 149 0.79
4 x 4 108 x 108 2.5 2.5 75 188 1.3
5 x 2 133 x 57 2.5 1.5 40 97 0.4
5 x 2.5 133 x 76.1 2.5 2 50 126 0.8
5 x 3 133 x 88.9 2.5 2 55 149 1
5 x 4 133 x 108 2.5 2.5 75 188 1.2
5 x 5 133 x 133 2.5 2.5 85 233 1.7
5 x 2 133 x 57 3 1.5 40 97 0.48
5 x 2.5 133 x 76.1 3 2 50 126 0.96
5 x 4 133 x 108 3 2.5 75 188 1.44
6 x 2.5 159 x 76.1 2.5 2 50 126 0.65
6 x 3 159 x 88.9 2.5 2 55 149 1
6 x 4 159 x 108 2.5 2.5 75 188 1.2
6 x 5 159 x 133 2.5 2.5 85 233 2
6 x 6 159 x 159 2.5 2.5 95 279 2.6
6 x 2.5 159 x 76.1 3 2 50 126 0.78
6 x 4 159 x 108 3 2.5 75 188 1.44
7 x 2.5 193.7 x 76.1 2.5 2 50 126 0.95
7 x 3 193.7 x 88.9 2.5 2 55 149 1.3
7 x 4 193.7 x 108 2.5 2.5 75 188 1.4
7 x 5 193.7 x 133 2.5 2.5 85 233 1.9
7 x 6 193.7 x 159 2.5 2.5 95 279 2.5
7 x 7 193.7 x 193.7 2.5 2.5 110 334 3.2
7 x 2.5 193.7 x 76.1 3.5 2.5 50 126 1.33
7 x 4 193.7 x 108 3.5 2.5 75 188 1.96
8 x 3 219.1 x 88.9 3 2 55 149 1.3
8 x 4 219.1 x 108 3 2.5 75 188 1.8
8 x 5 219.1 x 133 3 2.5 85 233 2.7
8 x 6 219.1 x 159 3 2.5 95 279 3.8
8 x 7 219.1 x 193.7 3 2.5 110 334 4.5
8 x 8 219.1 x 219.1 3 3 125 379 5.7
8 x 4 219.1 x 108 3.5 2.5 75 188 2.1
10 x 4 267 x 108 3 2.5 75 188 1.8
10 x 5 267 x 133 3 2.5 85 233 2.3
10 x 6 267 x 159 3 2.5 95 279 3.7
10 x 7 267 x 193.7 3 2.5 110 334 4.7
10 x 8 267 x 219.1 3 3 125 379 6.1
10 x 10 267 x 267 3 3 155 447 8.7
10 x 4 267 x 108 4 2.5 75 188 2.4
12 x 5 323.9 x 133 4 2.5 85 233 2.6
12 x 6 323.9 x 159 4 2.5 95 279 3.8
12 x 7 323.9 x 193.7 4 2.5 110 334 4.9
12 x 8 323.9 x 219.1 4 3 125 379 7.7
12 x 10 323.9 x 267 4 3 155 447 10
12 x 12 323.9 x 323.9 4 4 185 560 13
14 x 6 368 x 159 4 2.5 95 279 3.85
14 x 7 368 x 193.7 4 2.5 110 334 4.2
14 x 8 368 x 219.1 4 3 125 379 4.35
14 x 10 368 x 267 4 3 155 447 7.3
14 x 12 368 x 323.9 4 4 185 560 9.45
14 x 14 368 x 368 4 4 200 613 12.35
16 x 8 419.1 x 219.1 4 3 125 379 4.35
16 x 10 419.1 x 267 4 3 155 447 6.65
16 x 12 419.1 x 323.9 4 4 185 560 9.35
16 x 14 419.1 x 368 4 4 200 613 12
16 x 16 419.1 x 419.1 4 4 225 680 17.35
18 x 10 457.2 x 267 4 3 155 447 6.3
18 x 12 457.2 x 323.9 4 4 185 560 8
18 x 14 457.2 x 368 4 4 200 613 9.7
18 x 16 457.2 x 419.1 4 4 225 680 14.85
18 x 18 457.2 x 457.2 4 4 250 800 21.7
20 x 12 508 x 323.9 4.5 4 185 560 9
20 x 14 508 x 368 4.5 4 200 613 10.8
20 x 16 508 x 419.1 4.5 4 225 680 16.8
20 x 18 508 x 457.2 4.5 4 250 800 22.8
20 x 20 508 x 508 4.5 4.5 275 880 28.8
24 x 14 610 x 368 5 4 200 613 11.1
24 x 16 610 x 419.1 5 4 225 680 17.25
24 x 18 610 x 457.2 5 4 250 800 22.8
24 x 20 610 x 508 5 4.5 275 880 26.7
24 x 24 610 x 610 5 5 300 1020 47.2
